What is this line on my IR patch?

To put it simply… the thin line on your IR reflective patch is a seam on the raw material that repeats itself about every 18″.  It is the result of a unique tool we use to make your IR patch with one layer but unfortunately leaves a line on the film.

Overcoming the #1 complaint

When we first started designing our product in 2005, the #1 complaint we heard was that IR patches would fall apart in a short period of time. We were concerned with this problem and wanted to make a better patch. After much research, we had the answer… a 1 layer IR patch that would be more resistant to water, sand and other contaminations.

Honeycomb Patch falling apart

Is a thin line worth the difference?

Now we were faced with a decision.

“Make a 1 layer patch with a thin line but is more durable and protects longer

or make a 2 layer patch without a line yet falls apart?”

The choice was easy.  We chose the 1 layer process – SandStorm Technology™. Considering men and women’s lives were at risk, the durability of the patch was far more important than an intermittent blemish.

 We believed protecting you (our soldiers and police) while you are working in dark and dangerous situations outweighed this occasional thin line.

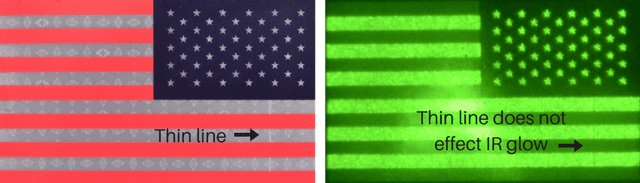

IR Garrison with thin line



US Army approved

As you can see in the picture, the seam in the patch does not have any impact on the IR glow protection.

Just to make sure, we had the patch evaluated by the US Army through Natick Soldier Systems Center. They determined the patch was perfectly safe for use in combat ID.

With the US Army’s approval, we confidently moved forward. Since 2006 IR.Tools™ has manufactured and sold over 4.5 million IR patches all over the globe. We can proudly say we provide a premium IR protection to the US Military and it’s Allies.



You are welcome to comment on this blog. You can also reach me at 443.292.8885 or TBoyer@IR.Tools

 The Author

Tom Boyer profile picture

Since 2006, Tom has been the driving force behind IR.Tools, dedicated to delivering top-notch infrared solutions to the military, law enforcement, and sportsmen communities.

What began with a single infrared patch has blossomed into a comprehensive store featuring hundreds of IFF patches, vehicle IFF, an extensive suite of thermal training targets, and tools for drone pilots.

Beyond his innovative products, Tom is passionate about educating users on infrared technology and showcasing how advancements in IR can enhance their operations.

Tom holds an MS in Mechanical Engineering from the University of Maryland and an MBA from Regents University.
