All of our IR Films are part of the Near, Mid and Far Infrared Science

Near, Mid and Far Infrared (IR) are all part of the electromagnetic spectrum, measuring in wavelengths from .7um to 14um. Near infrared (NIR) is part of the spectrum that includes wavelengths that are seen with a Night Vision device (NVG). Mid and Far IR have wavelengths that are only seen with a Thermal Imaging device. All of the IR Film we use in our identification products, originates in the science of the electromagnetic spectrum.

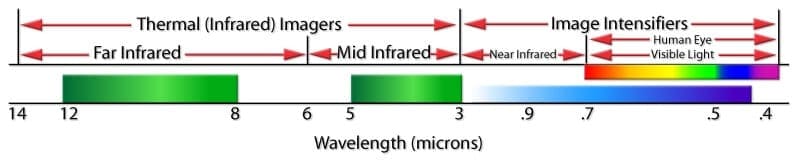

Infrared Spectrum graph

“The IR Film we use in our identification products originates in the science of the electromagnetic spectrum.”

As a rule “IR” refers to Near Infrared only

As early as WWII, Night Vision Goggles, (NVG’s) were introduced to the military to identify Near IR wavelengths. It was at this time the term “IR” was born.  While technology has caught up with the ability to detect Mid and Far infrared, when you hear “IR”, although technically not correct, refers to Near infrared wavelength only. Mid and Far infrared wavelengths are called “thermals” and the cameras used to identify them are thermal imagers.

 3 Infrared Films used in our Identification products

You choose the IR Film best for your operation

IR Reflective Film

There are two types of Identification: Covert or Non-Covert

IR Reflective – Covert Film



IR Reflective – Non-Covert Film

Personal ID

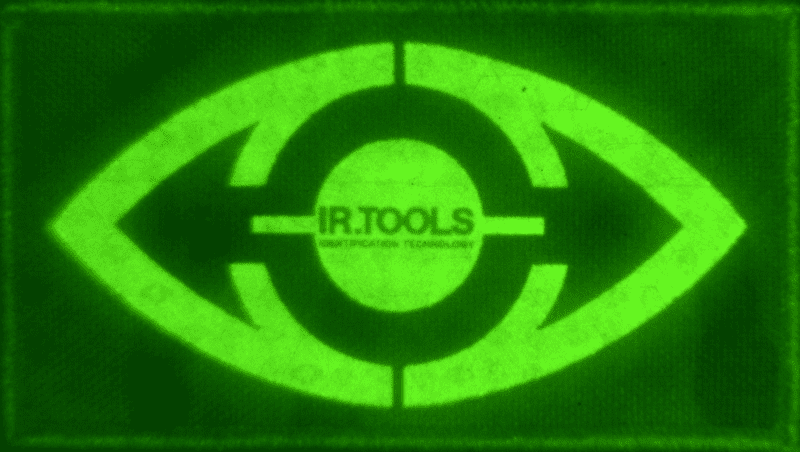

The most popular use of our IR film is in our IR Field patches for covert, stealth operations.

Personal ID

The IR film on this Garrison patch is used for protection at the base or other non-covert operations.

Vehicle ID

IR film is used on the sides of vehicles for additional “friendly” protection.



Targets

Zeroing  your weapon is easier with IR film on this training target.

See the difference!

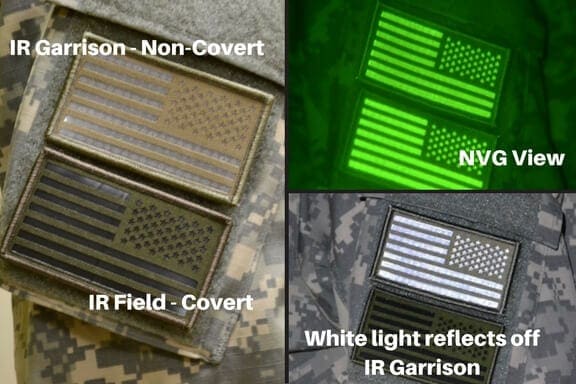

This picture is an example of a US flag, made with IR refective film. One is covert (black film), one is non-covert (white film).

Both patches can be seen with a Night Vision device.

White light will reflect off of the Garrison patch while the Field patch remains hidden for more stealth operations.

View more of our IR reflective patches.

 IR Reflective Film – Covert

Personal ID

The most popular use of our IR film is on our IR Field patches for covert, stealth operations.

Vehicle ID

IR film is used on the sides of vehicles for additional “friendly” protection.

Targets

Zeroing your weapon is easier with IR film on this passive target

IR Reflective Film – Non-Covert

The IR film on this Garrison patch is used for protection at the base or other non-covert operations.

Thermal Film Technology

Thermal Films are Rapidly Advancing

Mid wavelengths and Far wavelengths consist of energy which is naturally emitted by all things, organic and nonorganic, living and dead, all of which are at a temperature above absolute zero (-273C).  This reflective energy bounces off thermal film in the same way light reflects off a mirror.

We have taken this science to enhance our soldier’s and policemen’s ability to identify each other and prevent friendly fire, strengthen search and rescue missions, and boost unit morale.



Thermal Film for Personal ID

As we see an uptick in the use of NVG’s in the hands of our enemies, the use of Thermal film for personal identification is becoming more  and more desirable.

Thermal films are viewed with a thermal imager (FLIR) and will appear dark or  “cold”, a black and white contrast. Unlike an NVG, no illuminator is necessary to identify the personnel wearing the thermal patch or panel, which is ideal in maintaining a covert position. The patch or panel can be seen through sand, smoke and fog making it an excellent deterrent against friendly fire casualties.

The use of thermal technology for personal ID’s is rapidly advancing not only an option to IR identification but as a viable alternative.

Thermal Film on Vehicles

We are often asked, ”What can be done to identify personnel on the ground from the air?”

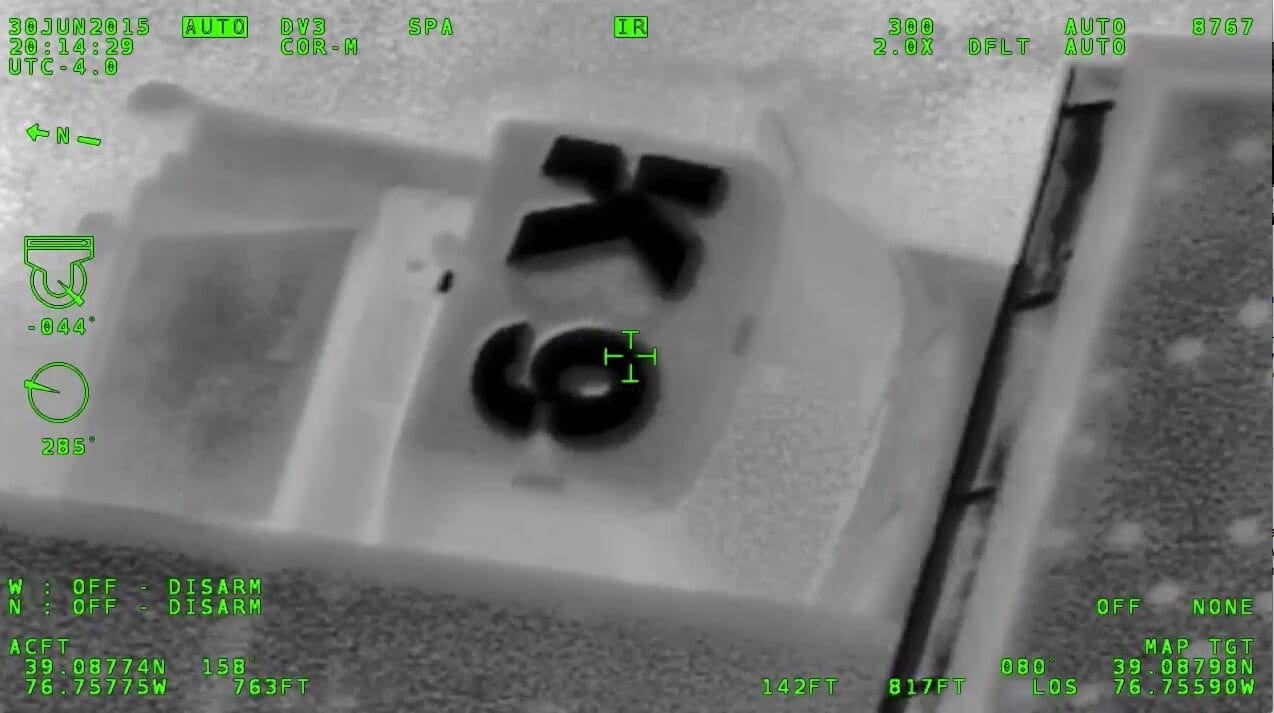

By marking vehicles on the ground with thermal film, airborne personnel, using a thermal camera, have the ability to see who is where.

Markers come in numbers, letters, and shapes are placed on the roof/hood of the vehicles enabling a greater command and control from the air. The thermal film marker reflects the cold sky, much like a mirror reflects light, and appears dark to the thermal camera.  The personnel viewing the thermal film can easily detect the location and identity of the vehicle.

Thermal Film for Target Training

Thermal films bring many advantages to target training.

Traditional target training requires the use of electricity, but with Thermal film targets, assembly takes only a few minutes and requires no power!

Thermal Film targets are:

  • Easy to use
  • Low cost with no need for batteries
  • Durable and repairable with pasters
  • Flexible and versatile to move around
  • Safe from electrocution hazards

Photo-luminescent Film Technology

A Glow in the Dark Identification Patch

Photo-luminescent film absorbs light in the visible and ultraviolet wavelengths and releases this light in a blue-green glow. In another words, the sun or electric light source will charge the film and it will glow in the dark!

No advanced equipment is needed to view the patch and a fully charged film can be seen with the naked eye for up to 8 hours.

This picture shows a US flag patch made with the Photo-luminescent film, fully charged.

This film is not recommended for covert operations although it can be seen by a Night Vision device.
